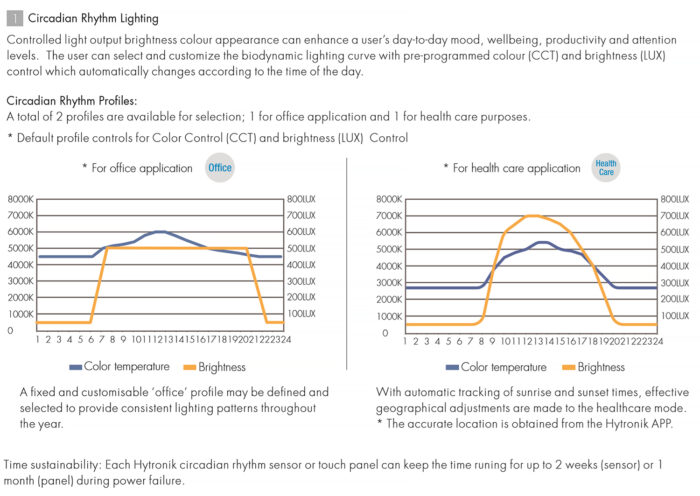

Different from other complex lighting systems, Hytronik circadian rhythm system offers a simple de-centralized human centric lighting solution for offices, schools and hospitals with the tunable white feature. Comprised of just one master sensor HBHC25 and optional occupancy sensor HBIR30, the system allows great flexibility and high specification in an easy installation and commission package. Thanks to the bluetooth module, now the system can be easily set and commissioned on our App. What’s more, the user can adjust brightness and colour temperature, as well as select different scenes on our specially designed bluetooth touch panel for human centric lighting.
| Mains Voltage | 220~240VAC |
| Stand-by power | <1V |
| Warming-up | 20s |
| Switched power | Max. 40 Devices, 80mA |
| Sensor Priciple | PIR Detections |
| Detection Range | Max. (OxH): 10m x 3m |
| Detection Angel | 360 Degrees |
| Mounting hight | 5m (maximum) |
| Operation temperature | -35 ~ +55 Degree Celcius |
| IP Rating | IP20 |
| Operation frequency (Bluetooth) | 2.4GHz – 2.483 GHz |
| Transmission power (Bluetooth) | 7dBm |
| Range (Typical) (Bluetooth) | 15 ~ 30m |
| Protocol | Bluetooth 4 Wireless Mesh |
| Certification | Semko, CB, EMC, CE, R&TTE, SAA |
