HE8050-A LED Driver Dimmable 50W

Smooth, flicker free dimming and low stand-by power consumption feature range which make them the ideal choice from low wattage downlights to LED Panel Lighting. The multiple current selectors make driver upgradesvery simple and a few models can cover a wide variety of fixtures.

Technical Data

Mains Voltage 220~240VAC 50/60 Hz
Mains Current 0.29~0.27A
Power Factor 0.9
Max. Efficiency 88%
Dielectric Strength Input → Output: 3000VAC
Leakage Current <0.25mA
Power/Current/Voltage Range 25W / 350mA / 15-72V

36W / 500mA / 15-72V

40W / 550mA / 15-72V

43W / 600mA / 15-72V

47W / 650mA / 15-72V

50W / 700mA / 15-72V

50W / 800mA / 15-63V

50W / 900mA / 15-56V

50W / 1050mA / 15-48V

Ripple Current <3%
Uout Max 100V
Turn-on Time <0.5s
Dimming Interface Switch-Dim, 1-10V
Operation temperature -20 ~ +45 °C
Case Temp. (Max) 80 °C
IP Rating IP20
EMC Standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
Safety Standard EN61347-1, EN62493, EN61347-2-13
Certifications Semko, CB, RCM, CE, EMC

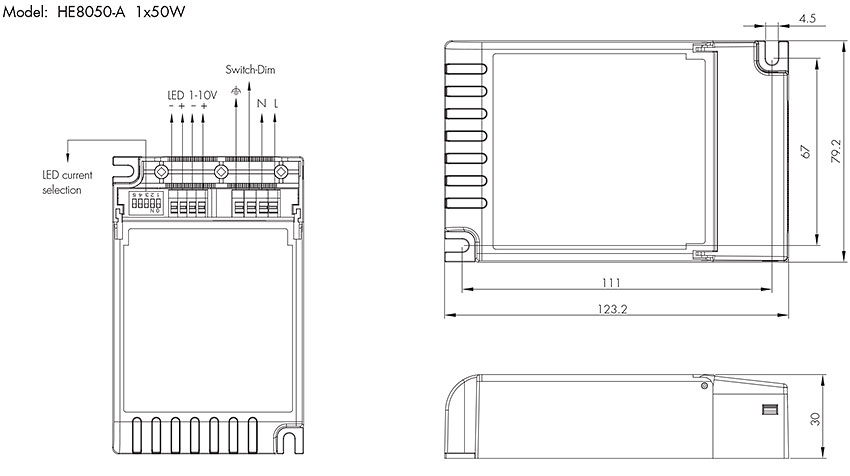

Dimensions and Terminals


Wiring diagram
