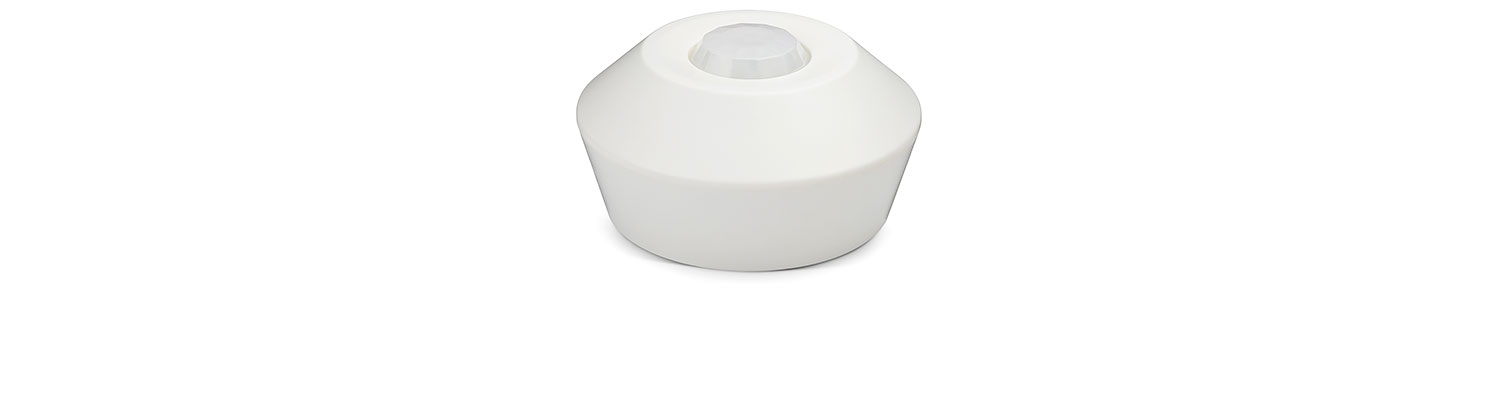

HIM15 Stand Alone Dual Sense DALI Tri-Level Control

Microwave and infrared technologies are both having advantage and disadvantage for industrial applications. Dual Sense is combining the technologies to make use of the advantage and bypass the disadvantage. There are 4 optional detection modes via DIP switch or remote control:

  • HF: Microwave only
  • PIR: PIR mode only
  • HF+PIR: both PIR and microwave mode, to decrease the detection capability and detection area. Only when both detections are activated, the motion is considered valid. This is to prevent the sensor from false trigger by heat source, air conditioner, ventilation fans, water pipe and elevators etc
  • HF/PIR: either PIR or microwave mode, to increase the detection capability and detection area

Technical Data

Mains Voltage 120~277VAC 50/60Hz
Stand-by power <1V
Warming-up 30s
Switched power  Max. 20pcs devices, 40mA
Sensor Priciple High Frequency (Microwave); PIR
Operation frequency 5.8GHz +/-75MHz
Transmission power <0.2mW
Sensor mode 4:modes PIR, HF, PIR + HF, PIR/HF
Detection Range Max. (OxH): 12m x 6m
Detection Angel 360 Degrees
Operation temperature -20 ~ +55 Degree Celcius
IP Rating IP20
Certification Semko, CB, EMC, CE, R&TTE, SAA

Wiring diagram
